Overview

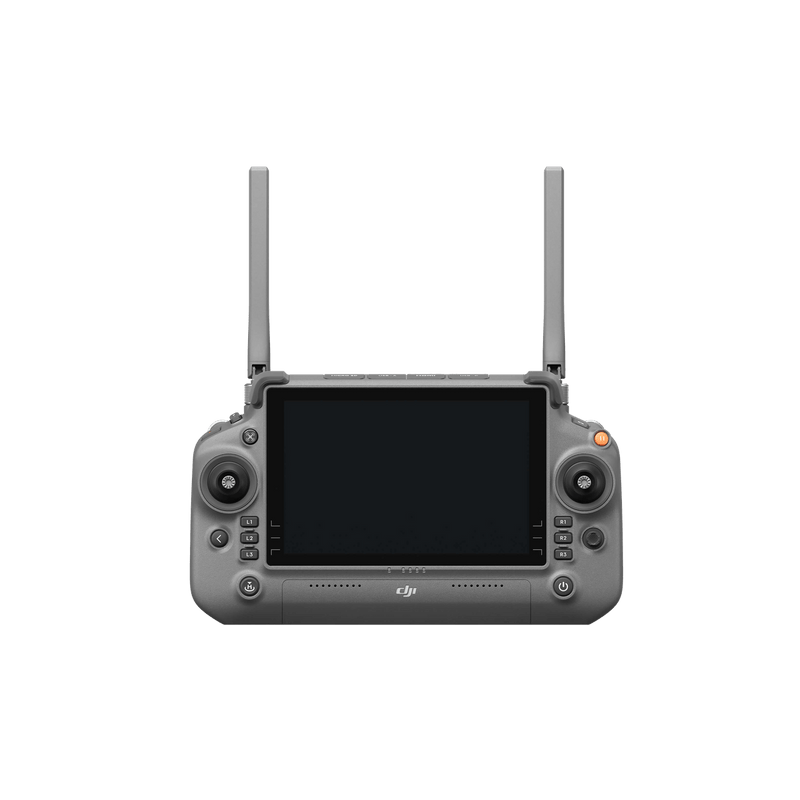

The DJI RC Plus is a professional-grade remote controller designed for the DJI Matrice 350 RTK and Matrice 30 series enterprise drones. Featuring a built-in 7-inch high-brightness touchscreen display with 1200 nits peak brightness, the RC Plus provides clear, sunlight-readable live video and telemetry in any outdoor conditions — eliminating the need for phone or tablet attachments.
The RC Plus supports dual-operator mode, allowing a pilot and camera operator to work simultaneously on different controllers for complex missions such as search and rescue or detailed infrastructure inspection. It features customisable physical buttons and control sticks, dual SD card slots for redundant data recording, and a built-in speaker and microphone for loudspeaker communication through compatible drones.
With an IP54 rating, swappable WB37 batteries providing up to 3 hours of operation, and an operating temperature range of -20°C to 50°C, the RC Plus is built for demanding field conditions. It runs DJI Pilot 2 software with full waypoint, mapping, and smart inspection capabilities, and supports 4G LTE connectivity via a dongle for enhanced situational awareness and remote monitoring.
| Specification | Details |
|---|---|
| Display | 7-inch touchscreen, 1200 nits peak brightness |
| Resolution | 1920 × 1200 |
| Operating System | Android |
| Battery | WB37 Intelligent Battery (swappable) |
| Battery Life | Approx. 3 hours (with single WB37) |
| Transmission System | DJI O3 Enterprise |
| Max Transmission Range | 20 km (FCC), dependent on aircraft |
| Storage | Dual SD card slots |
| IP Rating | IP54 |
| Operating Temperature | -20°C to 50°C |
| Weight | Approx. 1430 g (with battery) |
| Dual Operator | Supported (pilot + camera operator) |
| Compatible Aircraft | DJI Matrice 350 RTK, DJI Matrice 30/30T |
| Software | DJI Pilot 2 |
