Overview

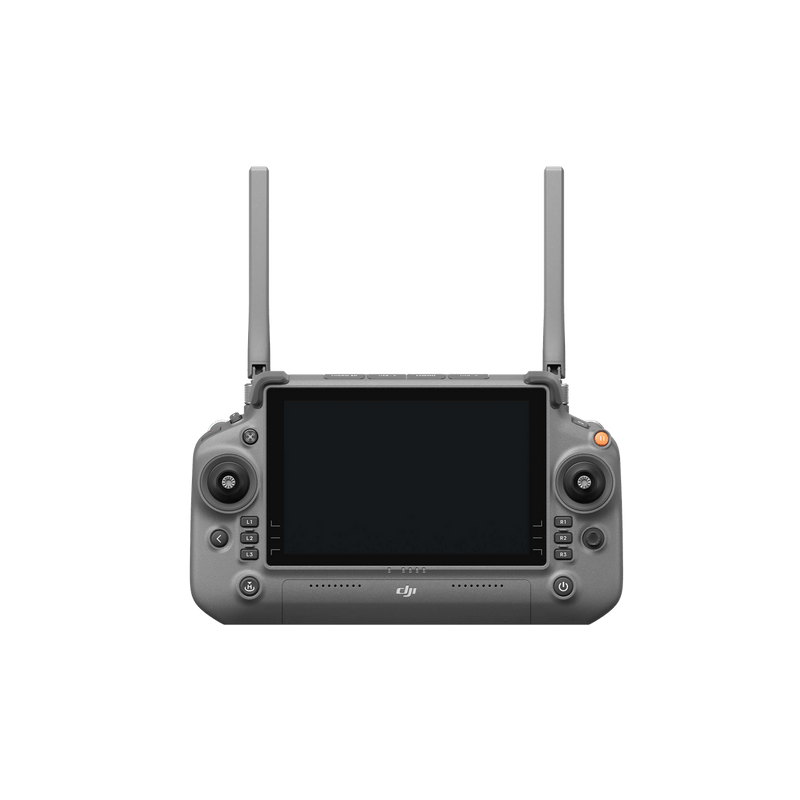

The DJI RC Plus 2 is the next-generation enterprise remote controller designed for DJI's Matrice 4 series drones. Building on the proven RC Plus platform, the RC Plus 2 delivers an enhanced control experience with an upgraded display, improved processing performance, and compatibility with DJI's latest transmission technology for low-latency, high-definition live video from the field.
Featuring a high-brightness touchscreen display optimised for outdoor visibility, the RC Plus 2 provides clear live video, map overlays, and telemetry data in direct sunlight. Customisable control sticks and function buttons give operators tactile control, while the integrated DJI Pilot 2 software supports advanced mission planning, waypoint flights, smart inspection, and real-time data management.
The RC Plus 2 is built for professional field use with weather resistance, extended battery life, and dual-operator mode support. It integrates with DJI FlightHub 2 for real-time fleet coordination and supports 4G LTE connectivity for enhanced communication and remote monitoring capabilities.
| Specification | Details |
|---|---|
| Display | 7.02-inch touchscreen, 1920 × 1200, 1400 nits, 10-point multi-touch |
| Transmission System | DJI O4 Enterprise |
| Max Transmission Range | 25 km (FCC), 12 km (CE) |
| Internal Battery | 6,500 mAh, 46.8 Wh, 3.8 hrs runtime |
| External Battery | WB37, 4,920 mAh, 3.2 hrs additional |
| Charging | USB-C PD, 20 V / 3.25 A, 2 hrs to full |
| IP Rating | IP54 |
| Operating Temperature | -20°C to 50°C |
| Weight | 1.15 kg (without external battery) |
| Storage | 8 GB RAM + 128 GB ROM + microSD |
| Dual Operator | Supported |
| Compatible Aircraft | DJI Matrice 4E, DJI Matrice 4T |
| Software | DJI Pilot 2 |
