Overview

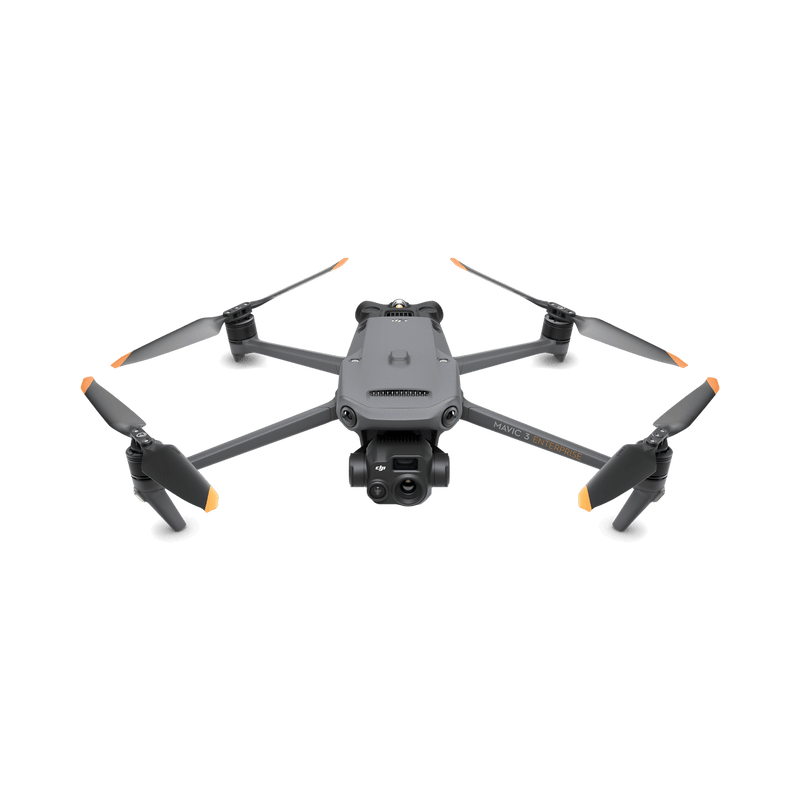

The DJI Mavic 3 Thermal (M3T) combines visible and thermal imaging in the ultraportable Mavic 3 Enterprise airframe, delivering professional thermal inspection capability that fits in a backpack. With a 640×512 radiometric thermal camera alongside the wide-angle and telephoto visible cameras, the M3T enables operators to detect temperature anomalies, locate heat signatures, and conduct thermal surveys from a compact, rapidly deployable platform.
The M3T's thermal camera features a 40° DFOV and supports precise temperature measurement from -20°C to 150°C (low gain) and 0°C to 500°C (high gain). Point, area, and line temperature measurement tools with high-temperature alerts make it straightforward to identify faults on electrical infrastructure, assess building thermal performance, detect solar panel defects, and support firefighting operations with real-time heat mapping.
With up to 45 minutes of flight time, omnidirectional obstacle sensing, and the same portability as the M3E, the M3T is purpose-built for field teams who need rapid thermal intelligence. It supports split-screen and picture-in-picture display modes, isothermal overlays, and integrates with DJI FlightHub 2 and DJI Pilot 2 for streamlined thermal inspection workflows.
| Specification | Details |
|---|---|
| Takeoff Weight | 920 g |
| Dimensions (Unfolded) | 347.5 × 283 × 107.7 mm |
| Dimensions (Folded) | 221 × 96.3 × 90.3 mm |
| Max Flight Time | 45 min |
| Max Speed | 21 m/s (75.6 km/h) |
| Max Wind Resistance | 12 m/s |
| Transmission System | DJI O3 Enterprise |
| Max Transmission Range | 15 km (FCC) |
| Wide Camera | 4/3 CMOS, 20 MP, equiv. 24 mm |
| Tele Camera | 1/2" CMOS, 12 MP, 56x max hybrid zoom |
| Thermal Camera | 640 × 512 resolution, uncooled VOx |
| Thermal Lens | DFOV 40°, equiv. 40 mm, f/1.0 |
| Thermal Sensitivity (NETD) | ≤50 mK @ 25°C |
| Temperature Measurement | -20°C to 150°C / 0°C to 500°C |
| RTK Positioning | Optional RTK module |
| Obstacle Sensing | Omnidirectional (APAS 5.0) |
| IP Rating | IP43 |
| Operating Temperature | -10°C to 40°C |
| GNSS | GPS + Galileo + BeiDou + GLONASS |
| Remote Controller | DJI RC Pro Enterprise |
