Overview

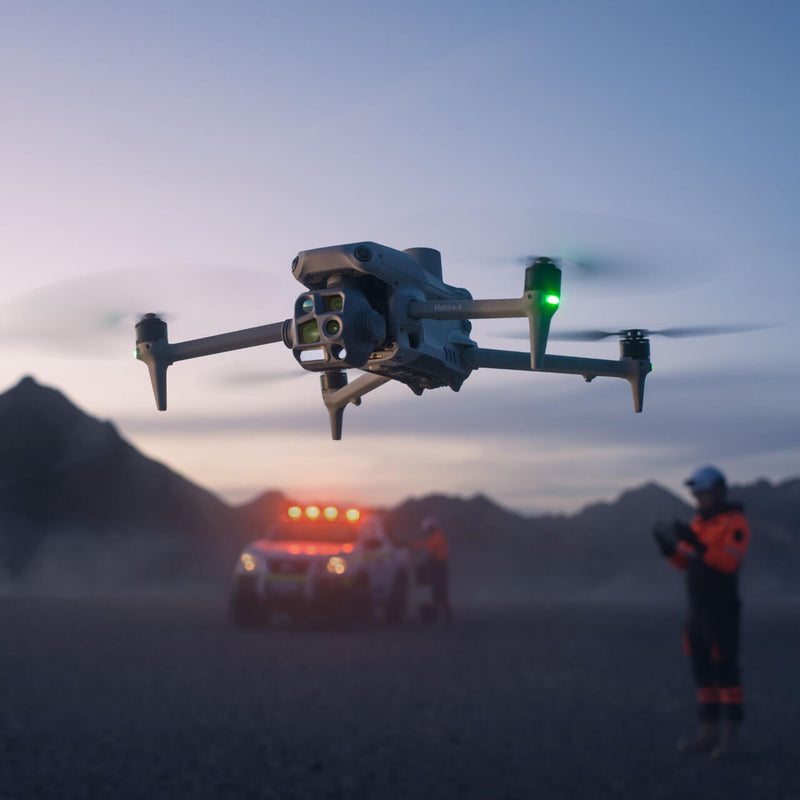

The DJI Matrice 4T is the thermal variant of DJI's next-generation portable enterprise platform, combining visible-light and thermal imaging in a compact, foldable airframe. Designed for field deployment in public safety, industrial inspection, and environmental monitoring, the M4T gives operators comprehensive multi-sensor capability in a highly portable package controlled via the DJI RC Plus 2.
The M4T integrates a wide-angle visible camera, a telephoto zoom camera, and a high-resolution radiometric thermal sensor with a laser rangefinder. This multi-sensor configuration supports split-screen viewing, thermal overlay, spot and area temperature measurement, and isothermal highlighting — enabling rapid identification of electrical faults, gas leaks, structural defects, missing persons, and fire hotspots.
With RTK positioning for georeferenced thermal mapping, omnidirectional obstacle sensing, and intelligent flight modes, the M4T streamlines thermal inspection workflows for field operators. It integrates with DJI FlightHub 2 for fleet management and real-time situational awareness, and supports automated inspection routines for repeatable, consistent results across sites.
| Specification | Details |
|---|---|
| Takeoff Weight | 1,219 g (standard propellers) |
| Max Takeoff Weight | 1,420 g |
| Dimensions (Unfolded) | 307.0 × 387.5 × 149.5 mm |
| Dimensions (Folded) | 260.6 × 113.7 × 138.4 mm |
| Max Flight Time | 49 min (standard), 46 min (low-noise) |
| Max Flight Distance | 35 km |
| Max Speed | 21 m/s |
| Max Wind Resistance | 12 m/s |
| Transmission System | DJI O4 Enterprise |
| Max Transmission Range | 25 km (FCC), 12 km (CE) |
| Wide Camera | 1/1.3-inch CMOS, 48 MP, f/1.7, 82° FOV, 24 mm equiv. |
| Medium Tele Camera | 1/1.3-inch CMOS, 48 MP, f/2.8, 70 mm equiv. |
| Telephoto Camera | 1/1.5-inch CMOS, 48 MP, f/2.8, 168 mm equiv., 112x hybrid zoom |
| Thermal Camera | 640 × 512, uncooled VOx, 12 μm pitch, f/1.0, NETD ≤50 mK |
| Temperature Range | -20°C to 150°C (high gain) / 0°C to 550°C (low gain) |
| Laser Rangefinder | 1,800 m range @ 20% reflectivity |
| RTK Positioning | Built-in, cm-level accuracy |
| Obstacle Sensing | Omnidirectional binocular vision + 3D infrared |
| IP Rating | Not rated (portable platform) |
| Operating Temperature | -10°C to 40°C |
| Battery | 6,741 mAh, 99.5 Wh, Li-ion 4S |
| GNSS | GPS + Galileo + BeiDou + GLONASS |
| Remote Controller | DJI RC Plus 2 |
