Overview

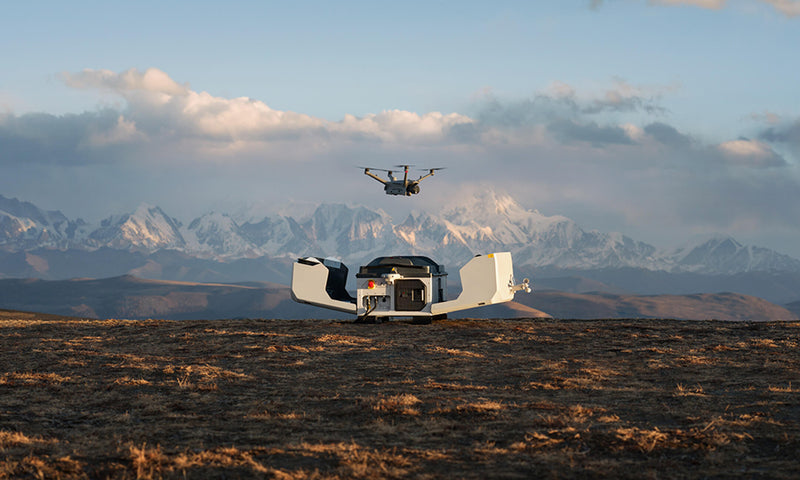

The DJI Dock 3 is DJI's next-generation drone-in-a-box solution, designed for fully autonomous remote operations with the DJI Matrice 4D and Matrice 4TD. Building on the proven Dock 2 platform, the Dock 3 delivers improved performance, faster turnaround times, and enhanced environmental resilience for persistent aerial monitoring and inspection at scale.
Engineered for permanent outdoor deployment, the Dock 3 features a weatherproof enclosure with comprehensive environmental protection, an integrated weather station for automated flight safety decisions, and a built-in surveillance camera for site security. Its improved charging system reduces turnaround time between flights, enabling higher daily mission throughput for demanding operational schedules.
Managed through DJI FlightHub 2, the Dock 3 supports scheduled automated missions, on-demand dispatch, real-time video streaming, and cloud-based data management. With 4G LTE and Ethernet connectivity options, remote diagnostics, and over-the-air firmware updates, the Dock 3 minimises on-site maintenance requirements while maximising operational uptime.
| Specification | Details |
|---|---|
| Weight | 55 kg (without aircraft) |
| Dimensions (Cover Open) | 1,760 × 745 × 485 mm |
| Dimensions (Cover Closed) | 640 × 745 × 770 mm |
| Compatible Aircraft | DJI Matrice 4D, DJI Matrice 4TD |
| Charging Time | 27 min (15% to 95% at 25°C) |
| Input Power | Max 800 W, AC 100-240 V, 50/60 Hz |
| Connectivity | Ethernet (10/100/1000 Mbps) + 4G via DJI Cellular Dongle 2 |
| Weather Station | Wind speed, rainfall, temperature, humidity, water immersion |
| Surveillance Cameras | 2x (external + internal), 1080p, 151° FOV |
| Backup Battery | 12 V, 12 Ah lead-acid, >4 hours |
| IP Rating | IP56 |
| Operating Temperature | -30°C to 50°C |
| Max Allowable Landing Wind | 12 m/s |
| Max Operating Altitude | 4,500 m |
| Management Platform | DJI FlightHub 2 |
