Overview

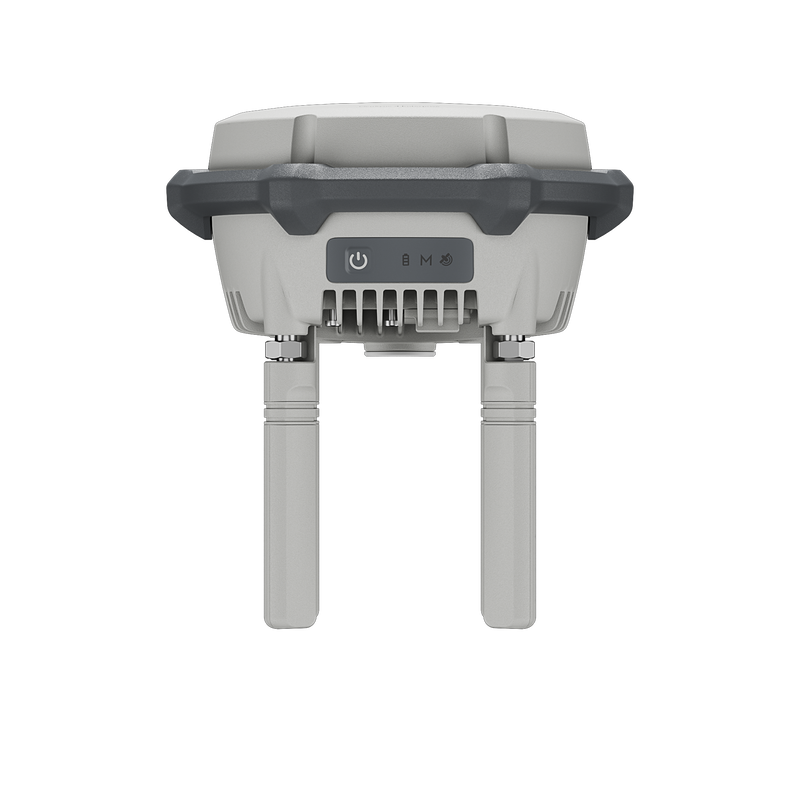

The DJI D-RTK 2 High Precision GNSS Mobile Station provides centimetre-level real-time kinematic (RTK) positioning for DJI enterprise drones in areas without network RTK coverage. By broadcasting RTK correction data directly to compatible aircraft, the D-RTK 2 enables survey-grade positioning accuracy in remote and regional areas of Australia where cellular-based NTRIP services may be unavailable or unreliable.
The D-RTK 2 supports multi-constellation GNSS reception including GPS, GLONASS, BeiDou, and Galileo, delivering reliable positioning performance across diverse environments. It provides corrections via DJI's datalink to compatible aircraft including the Matrice 350 RTK, Matrice 30 series, and Mavic 3 Enterprise series with RTK modules, achieving typical positioning accuracy of 1 cm + 1 ppm horizontal and 1.5 cm + 1 ppm vertical.
The station features a compact, portable design with a built-in battery and tripod mount, making it easy to transport and set up in the field. It can operate as a standalone base station or connect to existing survey networks. With IP65 weather protection and a wide operating temperature range, the D-RTK 2 performs reliably in the challenging field conditions common to Australian surveying and mapping operations.
| Specification | Details |
|---|---|
| Weight | Approx. 900 g (without tripod) |
| Positioning Accuracy (Horizontal) | 1 cm + 1 ppm (RMS) |
| Positioning Accuracy (Vertical) | 1.5 cm + 1 ppm (RMS) |
| GNSS | GPS L1/L2, GLONASS L1/L2, BeiDou B1/B2/B3, Galileo E1/E5 |
| Datalink Range | Up to 20 km |
| Battery Life | Approx. 6 hours |
| IP Rating | IP65 |
| Operating Temperature | -20°C to 50°C |
| Mounting | Standard survey tripod mount |
| Compatible Aircraft | Matrice 350 RTK, Matrice 30 series, Mavic 3 Enterprise (with RTK module), Phantom 4 RTK |
| Communication Protocol | RTCM 3.x |
